FP4 Explore, BF16 Train: Diffusion Reinforcement Learning via Efficient Rollout Scaling

Unlocking Massive Rollout Scaling for Diffusion RL at a Fraction of the Cost

Yitong Li^1,2*, Junsong Chen^1,2*, Shuchen Xue^1*, Pengcuo Zeren¹, Siyuan Fu¹, Dinghao Yang¹, Yangyang Tang¹,
Junjie Bai¹, Ping Luo², Song Han^1,3, Enze Xie¹

¹NVIDIA ²HKU ³MIT

*Equal contribution

📄 arXiv 💻 Code 📖 Docs

Demo Video

About

RL-based post-training is a promising paradigm for aligning diffusion models with human preferences, and scaling rollout group size yields clear gains — but at prohibitive cost on large models like FLUX.1-12B. We propose Sol-RL (Speed-of-light RL), an FP4-empowered two-stage RL framework that decouples exploration from optimization: high-throughput NVFP4 rollouts generate a massive candidate pool, from which only the most contrastive subset is regenerated in BF16 for policy updates. This algorithm-hardware co-design accelerates rollouts while preserving training integrity. Experiments across SANA, FLUX.1, and SD3.5-L show superior alignment with up to 4.64× faster convergence.

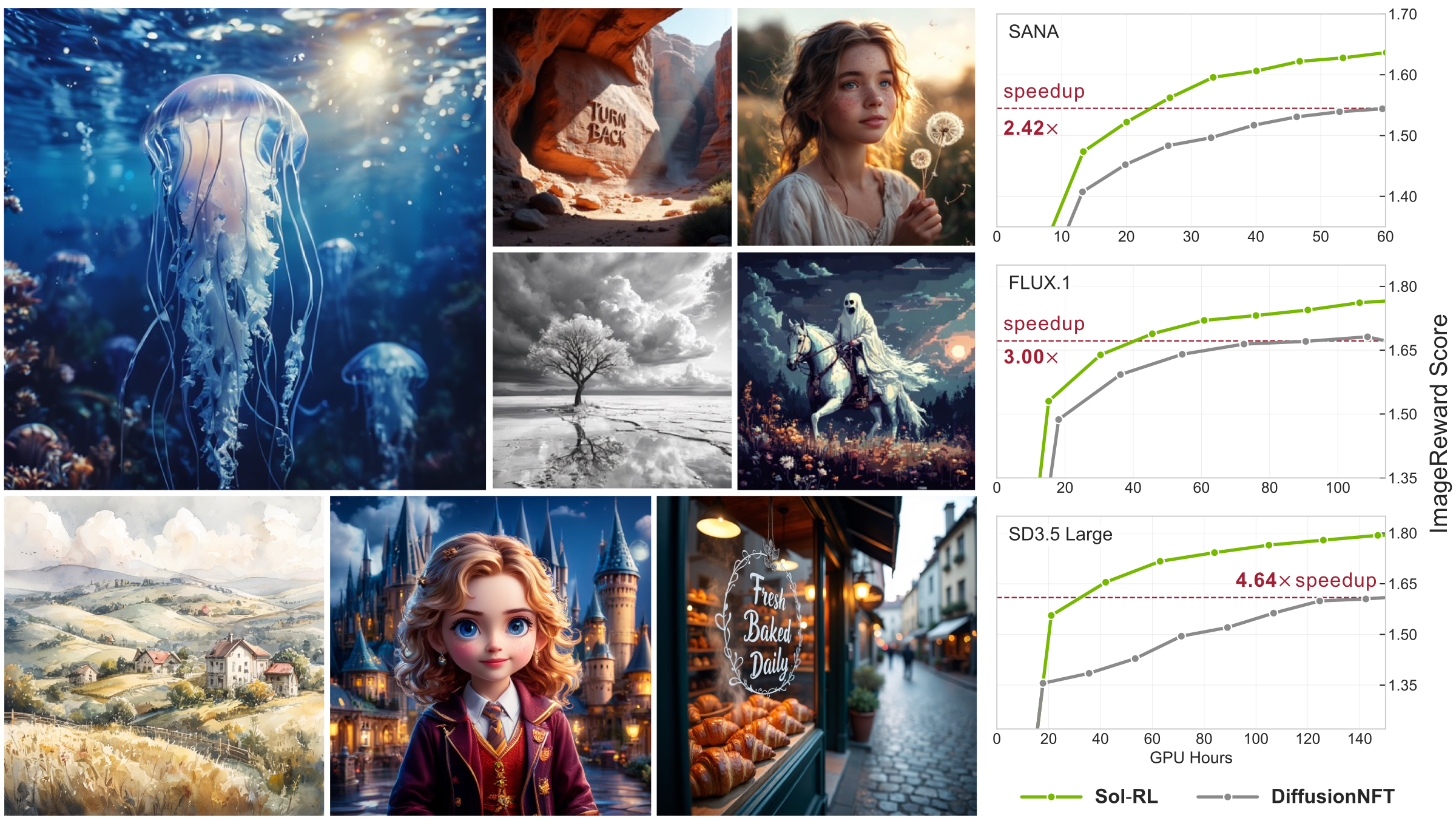

Sol-RL enables efficient and high-fidelity text-to-image alignment.

4.64×

Convergence Speedup

~1%

Performance Gap vs. BF16

3×4

Foundation Models & Rewards Validated

Qualitative Results

All methods side by side. Click any image to view fullscreen.

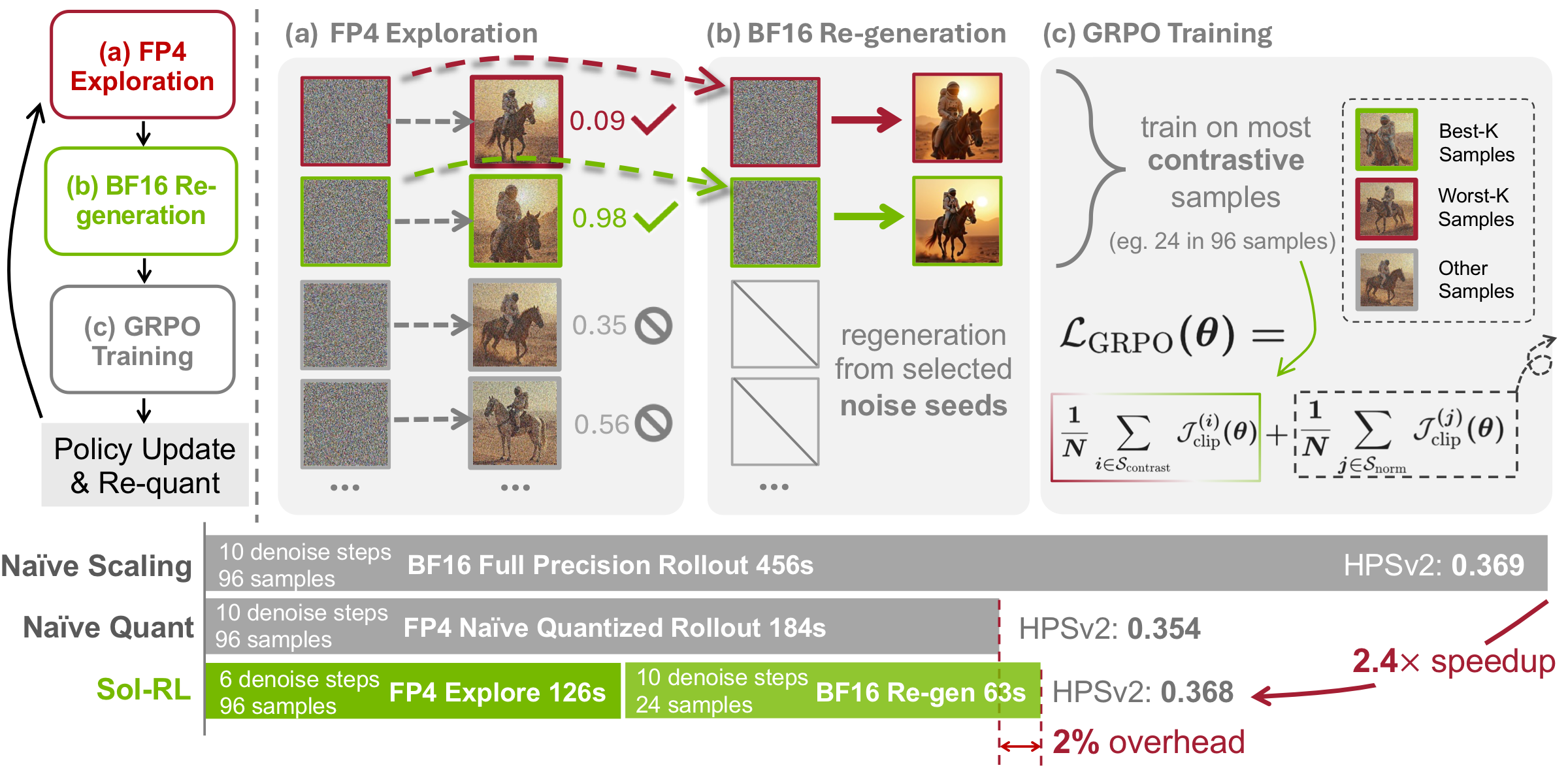

Core Design: Decoupled Two-Stage Pipeline

We decouple high-throughput FP4 exploration from selective BF16 training, achieving up to 2.4× rollout acceleration with merely 2% computational overhead while avoiding quantization-induced corruption.

Methodology

Scaling rollouts improves alignment but creates an inference bottleneck, and naive FP4 quantization compromises visual fidelity. Sol-RL introduces a decoupled two-stage architecture that uses FP4 exclusively for exploration while preserving BF16 for optimization.

Rollout Scaling: Promise and Bottleneck

Under selective training, only the best-K and worst-K samples drive gradient updates, so larger rollout groups yield better learning signals at fixed training cost. However, the vast majority of generated candidates are discarded — revealing massive redundancy in computing the full pool at high precision.

Key Insight: Proxy Reward Ranking via FP4

In ODE-style diffusion sampling, the semantic outcome is dictated by the initial noise seed. NVFP4 preserves this structure despite pixel-level deviations, so FP4 rollouts serve as reliable proxies for reward ranking — enabling us to identify the most informative seeds cheaply, then regenerate only those in BF16.

Two-Stage Pipeline

Stage 1: FP4 Explore — Sample N=96 noises and generate candidates via the NVFP4-quantized solver (up to 4× TFLOPs vs. BF16) to compute proxy rewards. Filter to isolate the top/bottom-K most contrastive seeds.
Stage 2: BF16 Train — Regenerate the selected K=24 seeds in BF16 with the full step budget. Optimize the policy on these high-fidelity samples, then re-quantize weights to NVFP4 for the next iteration.

In summary, Sol-RL harnesses FP4 throughput for massive-scale exploration and reserves BF16 compute strictly for the K samples that dictate the policy update — introducing merely ~2% overhead.

Overall Performance

Main Results on FLUX.1

Method	ImageReward (Base w/o CFG: 0.455)		CLIPScore (Base w/o CFG: 0.2630)		PickScore (Base w/o CFG: 0.8096)		HPSv2 (Base w/o CFG: 0.2566)
Method	Score	Δ (↑)	Score	Δ (↑)	Score	Δ (↑)	Score	Δ (↑)
DanceGRPO	1.4937	+1.0387	0.2898	+0.0268	0.8807	+0.0711	0.3552	+0.0986
FlowGRPO	1.5331	+1.0781	0.2884	+0.0254	0.8743	+0.0647	0.3501	+0.0935
AWM	1.6693	+1.2143	0.3039	+0.0409	0.8842	+0.0746	0.3664	+0.1098
DiffusionNFT	1.6707	+1.2157	0.2991	+0.0361	0.8852	+0.0756	0.3613	+0.1047
Sol-RL (Ours)	1.7636	+1.3086	0.3089	+0.0459	0.8932	+0.0836	0.3688	+0.1122

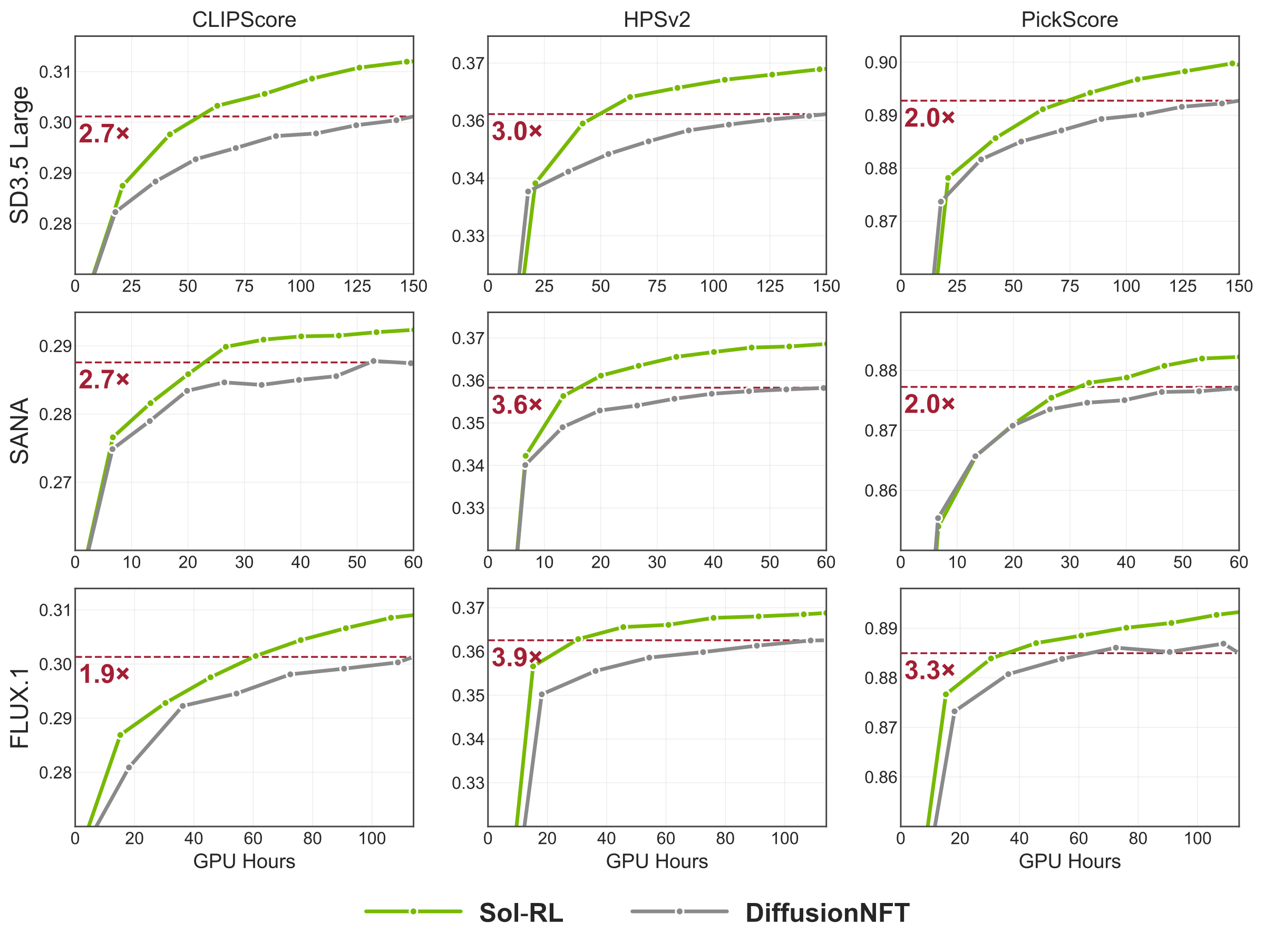

Learning curves across metrics and models.

Efficiency Comparison (seconds/iteration)

Base Model	Rollout Naive	Rollout Ours	Speedup	E2E Naive	E2E Ours	Speedup
FLUX.1	184	79	2.33×	274	169	1.62×
SD3.5-Large	451	187	2.41×	691	427	1.61×
SANA	65	46	1.41×	95	76	1.25×
