Build Robot Model

Build a cuRobo robot configuration from a URDF file.

cuRobo needs two pieces of information that a standard URDF does not contain: collision spheres fitted to each link mesh and a self-collision ignore matrix that lists link pairs whose collisions can be safely skipped. The RobotBuilder API generates both and writes them to a YAML or XRDF config file consumed by every downstream cuRobo module (forward kinematics, inverse kinematics, motion planning, MPC).

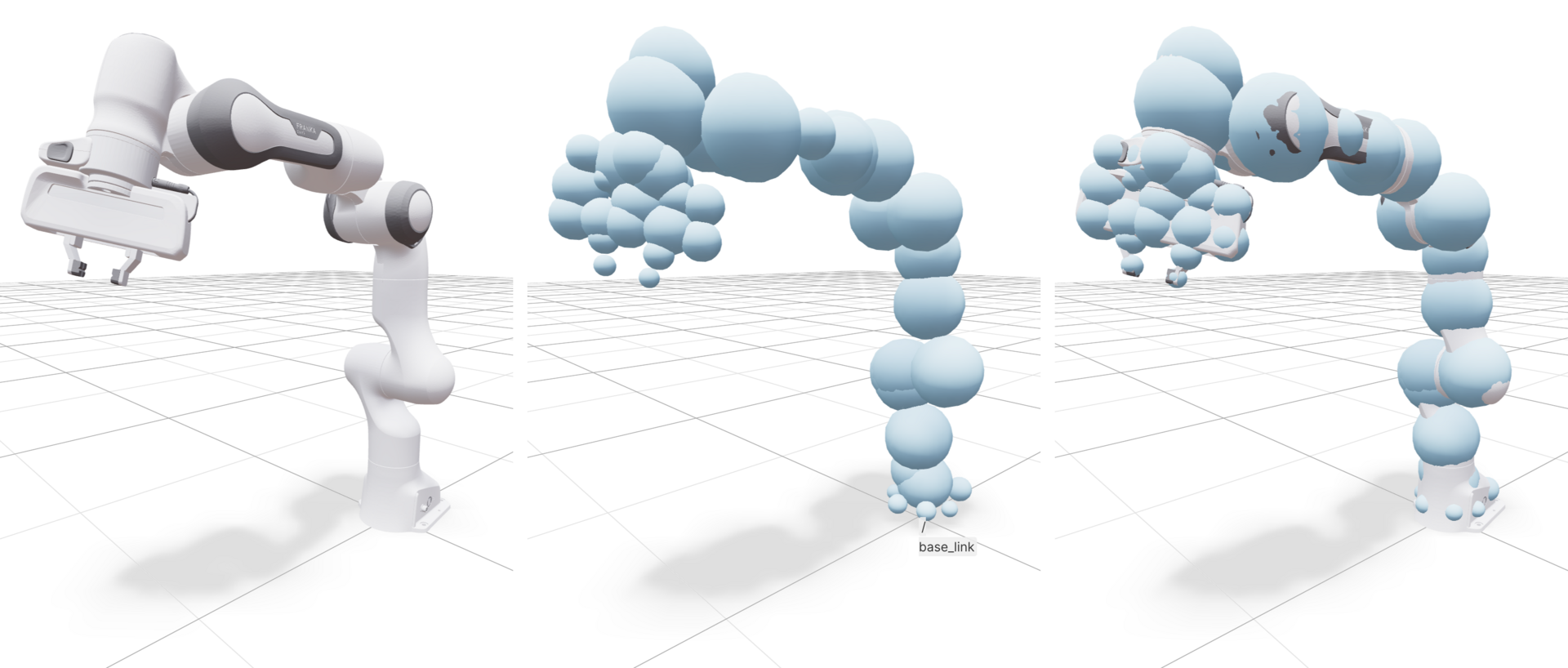

Robot mesh (left) and its collision sphere approximation (right)

By the end of this tutorial you will have:

  • Created a cuRobo robot configuration from a URDF file

  • Fitted collision spheres to each link mesh using the MorphIt optimizer

  • Computed an optimized self-collision ignore matrix

  • Inspected per-link sphere fit quality metrics

  • Visualized the fitted spheres in a browser

  • Saved the configuration in both YAML and XRDF formats

Step 1: Prepare your URDF

You need a URDF file and a directory containing the referenced mesh assets. cuRobo ships robot URDFs under curobo/content/assets/robot/, so the tutorial works out of the box with the bundled Franka Panda. For your own robot, package:// prefixes in mesh filenames are stripped automatically; set --asset-path to the directory that contains the remaining relative path (e.g., if the URDF says package://my_robot/meshes/link.stl, point --asset-path at the parent of my_robot/).

If your robot needs a floating base (e.g., a humanoid whose pelvis moves freely in space), use extra_links with child_link_name in the YAML config to insert virtual joints between base_link and the robot’s root body. This requires no URDF modification. See the humanoid retargeting guide for a complete example using the Unitree G1.

Step 2: Run the tutorial

python -m curobo.examples.getting_started.build_robot_model \
    --urdf curobo/content/assets/robot/franka_description/franka_panda.urdf \
    --asset-path curobo/content/assets/robot/franka_description \
    --output franka_custom.yml \
    --clip-link panda_link0 z 0.0 \
    --compute-metrics

Add --visualize to inspect the fitted spheres in a Viser viewer at http://localhost:8080. --clip-link panda_link0 z 0.0 keeps the base link’s spheres from protruding below the mounting surface (see Step 5).

Step 3: Check the output

When the tutorial finishes successfully you will see:

Building robot model from URDF: ...franka_panda.urdf
Found 11 links in robot

Fitting collision spheres...
Fitted 87 spheres across 9 links

  link                      n_sph  cover%  protr%   prot_mm  gap_mm  vol_ratio
  ---------------------------------------------------------------------------
  panda_link0                  12   98.3%    4.1%     0.72mm   1.04mm     1.124
  ...

Computing collision matrix...
Created collision ignore matrix with 28 entries

Saving to: franka_custom.yml
✓ Robot model created successfully!

The generated franka_custom.yml (or .xrdf if you chose that extension) is ready to use with ik_solver, motion_gen, or any other cuRobo wrapper.

Step 4: Understand the pipeline

The builder runs three stages:

  1. Sphere fitting: Each link mesh is approximated by a set of spheres using the MorphIt optimizer (an Adam-based iterative fit that balances interior coverage against surface protrusion). The --sphere-density multiplier controls how many spheres are allocated per link.

  2. Self-collision matrix: Link pairs that are always in collision (e.g. adjacent joints) or never reachable are identified via random joint sampling (--num-collision-samples) and placed in an ignore set so the downstream planner skips them.

  3. Export: The sphere and matrix data, together with the kinematic tree, are serialized to YAML (native cuRobo) or XRDF (Isaac Sim / Isaac Lab). Use --export-xrdf to emit both formats at once.

Step 5: Tuning (advanced)

  • --coverage-weight / --protrusion-weight control the MorphIt loss balance. Raise coverage-weight (default 1000) for tighter volume filling; raise protrusion-weight (default 10) to reduce overshoot.

  • --sphere-density 2.0 doubles the sphere budget per link.

  • --edit-config existing.yml --refit-link panda_hand re-fits spheres for a single link without re-running the entire pipeline.

  • --seed 42 pins NumPy and PyTorch RNGs for reproducible results.

  • --clip-link base_link z 0.0 prevents spheres on base_link from extending below z=0 in link-local coordinates. This is useful when the robot is mounted on a stand or bolted to the floor – without clipping, the base link spheres may overlap the mounting surface and cause perpetual collisions. The constraint is enforced as both a differentiable MorphIt loss and a hard post-fit clamp. Can be repeated for multiple links.

Once you have run the tutorial, open curobo.examples.getting_started.build_robot_model in your editor. The inline comments walk through the key design decisions: how sphere density affects collision checking fidelity, when to raise or lower the MorphIt loss weights, and how the self-collision matrix is pruned.
