Fitting Spheres to Geometry¶

cuRobo represents robots and grasped objects as sets of spheres for collision checking. This page describes the available sphere fitting techniques.

Use Cases¶

Grasped objects: During pick-and-place, the grasped object must be checked for collisions with the world. cuRobo approximates it as spheres and attaches them to the robot’s kinematic model.
Robot links: Robot geometry is approximated with spheres for self-collision and world collision checking. See Build Robot Model for configuring robot spheres.

Entry Point¶

The main function is curobo.geom.sphere_fit.fit_spheres_to_mesh:

from curobo.geom.sphere_fit import fit_spheres_to_mesh, SphereFitType
import trimesh

mesh = trimesh.load("my_object.obj")

# Automatic sphere count with default density
result = fit_spheres_to_mesh(mesh)

# Explicit sphere count
result = fit_spheres_to_mesh(mesh, n_spheres=50)

# With quality metrics
result = fit_spheres_to_mesh(mesh, compute_metrics=True)
print(f"Coverage: {result.metrics.coverage:.2%}, Protrusion: {result.metrics.protrusion:.2%}")

Parameters¶
Parameter	Description
`n_spheres`	Number of spheres to fit. When `None`, estimated automatically from bounding-box volume and `sphere_density`.
`sphere_density`	Density multiplier for auto sphere count (default `1.0`). `2.0` doubles the count, `0.5` halves it. Range: `0.1` – `10.0`.
`fit_type`	Fitting algorithm (default `MORPHIT`). See below.
`surface_radius`	Radius for surface-sampled spheres. Only affects `SURFACE` fit type.
`iterations`	Optimization iterations for `MORPHIT` (default `50`).
`compute_metrics`	When `True`, populates quality metrics on the result.
`clip_plane`	Half-plane constraint `((nx, ny, nz), offset)` in mesh-local coordinates. Spheres that cross the plane are penalised during MorphIt optimization and hard-clamped afterwards. Useful for keeping base-link spheres from protruding into a mounting surface.

Fit Types¶

cuRobo provides three methods via curobo.geom.sphere_fit.SphereFitType:

Type	Description
`SURFACE`	Samples the mesh surface evenly with fixed-radius spheres. Fast fallback for thin or degenerate meshes.
`VOXEL`	Voxelizes the bounding box, filters by SDF to keep interior voxels, and assigns inscribed radii. Good for convex shapes.
`MORPHIT`	Initialises with `VOXEL`, then runs Adam optimization to minimise coverage gaps and protrusion. Best quality, recommended default.

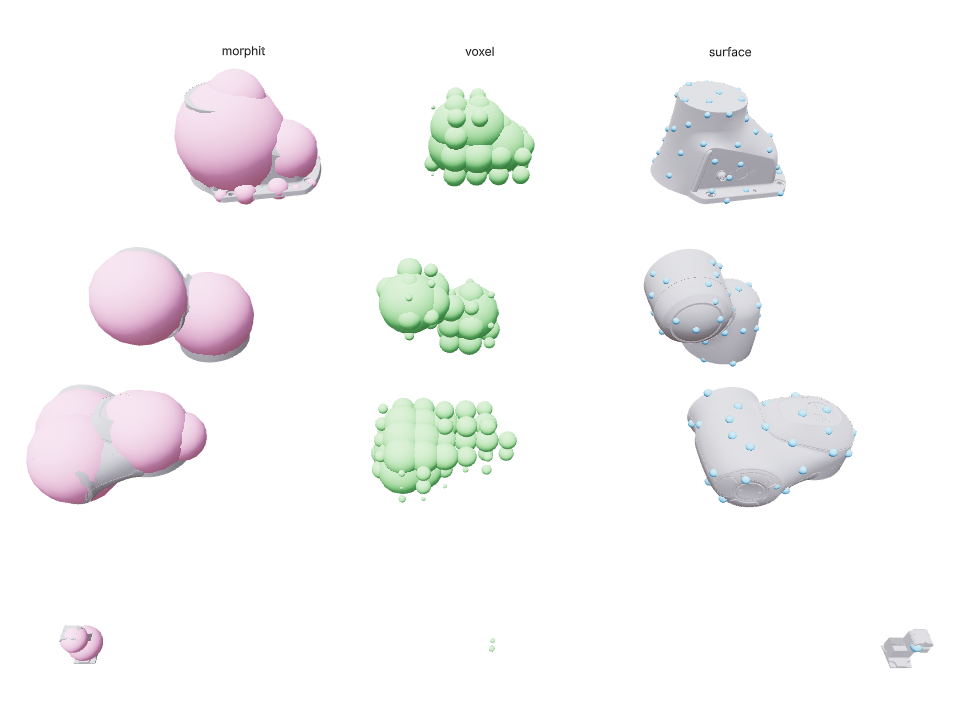

../_images/sphere_approx.png — Comparison of the three fit types on robot link meshes. From left to right: MORPHIT (pink), VOXEL (green), SURFACE (blue).¶

To visually compare the fit types interactively, run the comparison demo:

python -m curobo.examples.reference.sphere_fit_comparison

This launches a Viser viewer showing each fit type as a column of coloured spheres next to the original mesh. You can customise the robot, links, and methods:

python -m curobo.examples.reference.sphere_fit_comparison --robot franka.yml
python -m curobo.examples.reference.sphere_fit_comparison --links panda_link0 panda_link7
python -m curobo.examples.reference.sphere_fit_comparison --methods surface voxel morphit

The fitting pipeline automatically handles degenerate cases:

Hollow/thin meshes: Watertight meshes with extremely low fill ratio are replaced with their convex hull before fitting.
Fallback chain: If the primary method produces no spheres, falls back to VOXEL, then SURFACE.

Result¶

curobo.geom.sphere_fit.SphereFitResult contains:

Field	Description
`centers`	Sphere centre positions, shape `(N, 3)`.
`radii`	Sphere radii, shape `(N,)`.
`n_spheres`	Number of fitted spheres.
`fit_time_s`	Wall-clock fitting time in seconds.

Quality Metrics¶

When compute_metrics=True, the following fields are populated:

Metric	Description
`coverage`	Fraction of interior sample points covered by at least one sphere.
`protrusion`	Fraction of sphere-surface sample points outside the mesh.
`protrusion_dist_mean`	Mean distance (m) of protruding points to the mesh surface.
`protrusion_dist_p95`	95th-percentile protrusion distance (m).
`surface_gap_mean`	Mean gap (m) from mesh surface samples to nearest sphere surface.
`surface_gap_p95`	95th-percentile surface gap (m).
`max_uncovered_gap`	Maximum gap (m) from mesh surface to nearest sphere.
`volume_ratio`	Total sphere volume divided by mesh volume.

Inspecting Fit Quality¶

Pass --compute-metrics to the robot builder script to print a per-link quality report after sphere fitting:

python -m curobo.examples.getting_started.build_robot_model \
    --urdf robot.urdf --asset-path meshes/ --output robot.yml \
    --compute-metrics

The same metrics are available programmatically via builder.link_metrics (a dict of SphereFitMetrics).

Clip Planes¶

When a robot is mounted on a stand or bolted to the floor, base-link spheres may protrude into the mounting surface. Pass --clip-link to prevent this:

python -m curobo.examples.getting_started.build_robot_model \
    --urdf robot.urdf --asset-path meshes/ --output robot.yml \
    --clip-link base_link z 0.0

This adds a half-plane constraint during MorphIt optimization (as a differentiable loss term) and applies a hard clamp after fitting, so no sphere on base_link extends below z=0 in link-local coordinates. The flag can be repeated for multiple links.

Programmatically, pass clip_links to RobotBuilder.fit_collision_spheres:

builder.fit_collision_spheres(clip_links={"base_link": ("z", 0.0)})

Geometry Helper¶

Individual geometry objects also provide a convenience method for sphere fitting:

from curobo.geom.types import Capsule, WorldCfg

capsule = Capsule(
   name="capsule",
   radius=0.2,
   base=[0, 0, 0],
   tip=[0, 0, 0.5],
   pose=[0.0, 5, 0.0, 0.043, -0.471, 0.284, 0.834],
)

sph = capsule.get_bounding_spheres(n_spheres=500)
WorldCfg(spheres=sph).save_world_as_mesh("bounding_spheres.obj")
