Scenes#

sionna.rt.load_scene(filename: str | None = None, merge_shapes: bool = True, merge_shapes_exclude_regex: str | None = None, remove_duplicate_vertices: bool = False) → sionna.rt.scene.Scene[source]#

Loads a scene from file

Parameters:

filename (str | None) – Name of a valid scene file. Sionna uses the simple XML-based format from Mitsuba 3. For None, an empty scene is created.
merge_shapes (bool) – If set to True, shapes that share the same radio material are merged.
merge_shapes_exclude_regex (str | None) – Optional regex to exclude shapes from merging. Only used if merge_shapes is set to True.
remove_duplicate_vertices (bool) – If set to True, duplicate vertices are removed from the scene objects.

class sionna.rt.Scene(mi_scene: mitsuba.Scene | None = None, remove_duplicate_vertices: bool = False)[source]#

A scene contains everything that is needed for radio propagation simulation and rendering.

A scene is a collection of multiple instances of SceneObject which define the geometry and materials of the objects in the scene. It also includes transmitters (Transmitter) and receivers (Receiver).

A scene is instantiated by calling load_scene().

Example scenes can be loaded as follows:

from sionna.rt import load_scene
scene = load_scene(sionna.rt.scene.munich)
scene.preview()

Parameters:

mi_scene (mi.Scene | None) – A Mitsuba scene
remove_duplicate_vertices (bool)

Methods

add(item: sionna.rt.radio_devices.radio_device.RadioDevice | sionna.rt.radio_materials.radio_material_base.RadioMaterialBase) → None[source]#

Adds a radio device or radio material to the scene

If a different item with the same name as item is part of the scene, an error is raised.

Parameters:: item (sionna.rt.radio_devices.radio_device.RadioDevice | sionna.rt.radio_materials.radio_material_base.RadioMaterialBase) – Item to be added to the scene

all_set(radio_map: bool) → None[source]#

Raises an exception if the scene is not all set for simulations

Parameters:: radio_map (bool) – Set to True if checking for radio map computation. Set to False otherwise.

Add and/or remove a list of objects to/from the scene

To optimize performance and reduce processing time, it is recommended to use a single call to this function with a list of objects to add and/or remove, rather than making multiple individual calls to edit scene objects.

Parameters:

add (sionna.rt.scene_object.SceneObject | list[sionna.rt.scene_object.SceneObject] | dict | None) – Object, or list /dictionary of objects to be added
remove (str | sionna.rt.scene_object.SceneObject | list[sionna.rt.scene_object.SceneObject | str] | None) – Name or object, or list/dictionary of objects or names to be added

get(name: str) → None | sionna.rt.radio_devices.radio_device.RadioDevice | sionna.rt.radio_materials.radio_material_base.RadioMaterialBase[source]#

Returns a scene object, radio device, or radio material

Parameters:: name (str) – Name of the item to retrieve

preview(*, background: str = 'white', clip_at: float | None = None, clip_plane_orientation: tuple[float, float, float] = (0, 0, -1), fov: float = 45.0, paths: sionna.rt.Paths | None = None, radio_map: sionna.rt.PlanarRadioMap | sionna.rt.MeshRadioMap | None = None, resolution: tuple[int, int] = (655, 500), rm_db_scale: bool = True, rm_metric: str = 'path_gain', rm_tx: int | str | None = None, rm_vmax: float | None = None, rm_vmin: float | None = None, rm_cmap: callable | str | None = None, show_devices: bool = True, show_orientations: bool = False, point_picker: bool = True) → None[source]#

In an interactive notebook environment, opens an interactive 3D viewer of the scene.

Default color coding:

Green: Receiver
Blue: Transmitter

Controls:

Mouse left: Rotate
Scroll wheel: Zoom
Mouse right: Move

Parameters:

background (str) – Background color in hex format prefixed by “#”
clip_at (float | None) – If not None, the scene preview will be clipped (cut) by a plane with normal orientation clip_plane_orientation and offset clip_at. That means that everything behind the plane becomes invisible. This allows visualizing the interior of meshes, such as buildings.
clip_plane_orientation (tuple[float, float, float]) – Normal vector of the clipping plane
fov (float) – Field of view [deg]
paths (sionna.rt.Paths | None) – Optional propagation paths to be shown
radio_map (sionna.rt.PlanarRadioMap | sionna.rt.MeshRadioMap | None) – Optional radio map to be shown
resolution (tuple[int, int]) – Size of the viewer figure
rm_db_scale (bool) – Use logarithmic scale for radio map visualization, i.e. the radio map values are mapped to: \(y = 10 \cdot \log_{10}(x)\).
rm_metric ("path_gain" | "rss" | "sinr") – Metric of the radio map to be displayed
rm_tx (int | str | None) – When radio_map is specified, controls for which of the transmitters the radio map is shown. Either the transmitter’s name or index can be given. If None, the maximum metric over all transmitters is shown.
rm_vmax (float | None) – For radio map visualization, defines the maximum value that the colormap covers. It should be provided in dB if rm_db_scale is set to True, or in linear scale otherwise.
rm_vmin (float | None) – For radio map visualization, defines the minimum value that the colormap covers. It should be provided in dB if rm_db_scale is set to True, or in linear scale otherwise.
rm_cmap (callable | str | None) – For coverage map visualization, defines the colormap to use. If set to None, then the default colormap is used. If a string is given, it is interpreted as a Matplotlib colormap name. If a callable is given, it is used as a custom colormap function with the same interface as a Matplotlib colormap. Defaults to None.
show_devices (bool) – Show radio devices
show_orientations (bool) – Show orientation of radio devices
point_picker (bool) – Enable picking a point in the scene with alt + click in order to display its coordinates.

remove(name: str) → None[source]#

Removes a radio device or radio material from the scene

In the case of a radio material, it must not be used by any object of the scene.

Parameters:: name (str) – Name of the item to be removed

render(*, camera: Camera | str, clip_at: float | None = None, clip_plane_orientation: tuple[float, float, float] = (0, 0, -1), envmap: str | None = None, fov: float | None = None, lighting_scale: float = 1.0, num_samples: int = 128, paths: sionna.rt.Paths | None = None, radio_map: sionna.rt.RadioMap | None = None, resolution: tuple[int, int] = (655, 500), return_bitmap: bool = False, rm_db_scale: bool = True, rm_metric: str = 'path_gain', rm_show_color_bar: bool = False, rm_tx: int | str | None = None, rm_vmax: float | None = None, rm_vmin: float | None = None, rm_cmap: str | callable | None = None, show_devices: bool = True, show_orientations: bool = False) → plt.Figure | mi.Bitmap[source]#

Renders the scene from the viewpoint of a camera or the interactive viewer

Parameters:

camera (Camera | str) – Camera to be used for rendering the scene. If an interactive viewer was opened with preview(), “preview” can be to used to render the scene from its viewpoint.
clip_at (float | None) – If not None, the scene preview will be clipped (cut) by a plane with normal orientation clip_plane_orientation and offset clip_at. That means that everything behind the plane becomes invisible. This allows visualizing the interior of meshes, such as buildings.
clip_plane_orientation (tuple[float, float, float]) – Normal vector of the clipping plane
envmap (str | None) – Path to an environment map image file (e.g. in EXR format) to use for scene lighting
fov (float | None) – Field of view [deg]. If None, the field of view will default to 45 degrees, unless camera is set to “preview”, in which case the field of view of the preview camera is used.
lighting_scale (float) – Scale to apply to the lighting in the scene (e.g., from a constant uniform emitter or a given environment map)
num_samples (int) – Number of rays thrown per pixel
paths (sionna.rt.Paths | None) – Optional propagation paths to be shown
radio_map (sionna.rt.RadioMap | None) – Optional radio map to be shown
resolution (tuple[int, int]) – Size of the viewer figure
return_bitmap (bool) – If True, directly return the rendered image
rm_db_scale (bool) – Use logarithmic scale for radio map visualization, i.e. the radio map values are mapped to: \(y = 10 \cdot \log_{10}(x)\).
rm_metric ("path_gain" | "rss" | "sinr") – Metric of the radio map to be displayed
rm_show_color_bar (bool) – Show color bar
rm_tx (int | str | None) – When radio_map is specified, controls for which of the transmitters the radio map is shown. Either the transmitter’s name or index can be given. If None, the maximum metric over all transmitters is shown.
rm_vmax (float | None) – For radio map visualization, defines the maximum value that the colormap covers. It should be provided in dB if rm_db_scale is set to True, or in linear scale otherwise.
rm_vmin (float | None) – For radio map visualization, defines the minimum value that the colormap covers. It should be provided in dB if rm_db_scale is set to True, or in linear scale otherwise.
rm_cmap (str | callable | None) – For coverage map visualization, defines the colormap to use. If set to None, then the default colormap is used. If a string is given, it is interpreted as a Matplotlib colormap name. If a callable is given, it is used as a custom colormap function with the same interface as a Matplotlib colormap. Defaults to None.
show_devices (bool) – Show radio devices
show_orientations (bool) – Show orientation of radio devices

render_to_file(*, camera: sionna.rt.camera.Camera | str, filename: str, clip_at: float | None = None, clip_plane_orientation: tuple[float, float, float] = (0, 0, -1), envmap: str | None = None, fov: float | None = None, lighting_scale: float = 1.0, num_samples: int = 512, paths: sionna.rt.path_solvers.paths.Paths | None = None, radio_map: sionna.rt.radio_map_solvers.radio_map.RadioMap | None = None, resolution: tuple[int, int] = (655, 500), rm_db_scale: bool = True, rm_metric: str = 'path_gain', rm_tx: int | str | None = None, rm_vmin: float | None = None, rm_vmax: float | None = None, show_devices: bool = True, show_orientations: bool = True) → mitsuba.Bitmap[source]#

Renders the scene from the viewpoint of a camera or the interactive viewer, and saves the resulting image

Parameters:

camera (sionna.rt.camera.Camera | str) – Camera to be used for rendering the scene. If an interactive viewer was opened with preview(), “preview” can be to used to render the scene from its viewpoint.
filename (str) – Filename for saving the rendered image, e.g., “my_scene.png”
clip_at (float | None) – If not None, the scene preview will be clipped (cut) by a plane with normal orientation clip_plane_orientation and offset clip_at. That means that everything behind the plane becomes invisible. This allows visualizing the interior of meshes, such as buildings.
clip_plane_orientation (tuple[float, float, float]) – Normal vector of the clipping plane
envmap (str | None) – Path to an environment map image file (e.g. in EXR format) to use for scene lighting
fov (float | None) – Field of view [deg]. If None, the field of view will default to 45 degrees, unless camera is set to “preview”, in which case the field of view of the preview camera is used.
lighting_scale (float) – Scale to apply to the lighting in the scene (e.g., from a constant uniform emitter or a given environment map)
num_samples (int) – Number of rays thrown per pixel
paths (sionna.rt.path_solvers.paths.Paths | None) – Optional propagation paths to be shown
radio_map (sionna.rt.radio_map_solvers.radio_map.RadioMap | None) – Optional radio map to be shown
resolution (tuple[int, int]) – Size of the viewer figure
rm_db_scale (bool) – Use logarithmic scale for radio map visualization, i.e. the radio map values are mapped to: \(y = 10 \cdot \log_{10}(x)\).
rm_metric ("path_gain" | "rss" | "sinr") – Metric of the radio map to be displayed
rm_tx (int | str | None) – When radio_map is specified, controls for which of the transmitters the radio map is shown. Either the transmitter’s name or index can be given. If None, the maximum metric over all transmitters is shown.
rm_vmax (float | None) – For radio map visualization, defines the maximum value that the colormap covers. It should be provided in dB if rm_db_scale is set to True, or in linear scale otherwise.
rm_vmin (float | None) – For radio map visualization, defines the minimum value that the colormap covers. It should be provided in dB if rm_db_scale is set to True, or in linear scale otherwise.
show_devices (bool) – Show radio devices
show_orientations (bool) – Show orientation of radio devices

scene_geometry_updated() → None[source]#: Callback to trigger when the scene geometry is updated

sources(synthetic_array: bool, return_velocities: bool) → tuple[mitsuba.Point3f, mitsuba.Point3f, mitsuba.Point3f | None, mitsuba.Vector3f | None][source]#

Builds arrays containing the positions and orientations of the sources

If synthetic arrays are not used, then every transmit antenna is modeled as a source of paths. Otherwise, transmitters are modelled as if they had a single antenna located at their position.

Returns:

Positions of the sources

Returns:

Orientations of the sources

Returns:

Positions of the antenna elements relative to the transmitters positions. None is returned if synthetic_array is True.

Returns:

Velocities of the transmitters. None is returned if return_velocities is set to False.

Parameters:

synthetic_array (bool)
return_velocities (bool)

targets(synthetic_array: bool, return_velocities: bool) → tuple[mitsuba.Point3f, mitsuba.Point3f, mitsuba.Point3f | None, mitsuba.Vector3f | None][source]#

Builds arrays containing the positions and orientations of the targets

If synthetic arrays are not used, then every receiver antenna is modeled as a source of paths. Otherwise, receivers are modelled as if they had a single antenna located at their position.

Returns:

Positions of the targets

Returns:

Orientations of the targets

Returns:

Positions of the antenna elements relative to the receivers. Only returned if synthetic_array is True.

Returns:

Velocities of the transmitters. None is returned if return_velocities is set to False.

Parameters:

synthetic_array (bool)
return_velocities (bool)

Attributes

property angular_frequency#: mi.Float: Angular frequency [rad/s]

property bandwidth#

mi.Float: Get/set the transmission bandwidth [Hz].: Used for the computation of thermal_noise_power.

property frequency#: mi.Float: Get/set the carrier frequency [Hz]

property mi_scene#: mi.Scene: Mitsuba scene

property mi_scene_params#: mi.SceneParameters: Mitsuba scene parameters

property objects#

dict, { “name”, SceneObject}: Dictionary: of scene objects

property paths_solver#: rt.PathSolverBase: Get/set the path solver

property radio_materials#

dict, { “name”, RadioMaterialBase} :: Dictionary of radio materials

property receivers#

dict, { “name”, Receiver}: Dictionary: of receivers

property rx_array#

AntennaArray: Get/set the antenna array used by: all receivers in the scene

property temperature#

mi.Float: Get/set the environment temperature [K].: Used for the computation of thermal_noise_power.

property thermal_noise_power#: mi.Float: Thermal noise power [W]

property transmitters#

dict, { “name”, Transmitter}: Dictionary: of transmitters

property tx_array#

AntennaArray: Get/set the antenna array used by: all transmitters in the scene

property wavelength#: mi.Float: Wavelength [m]

property wavenumber#: mi.Float : Wavenumber [rad/m]

Built-in scenes#

Sionna has several integrated scenes that are listed below. They can be loaded and used as follows:

scene = load_scene(sionna.rt.scene.etoile)
scene.preview()

sionna.rt.scene.box#: Example scene containing a metallic box

(Blender file)

sionna.rt.scene.box_one_screen#

Example scene containing a metallic box and a screen made of glass

Note: In the figure below, the upper face of the box has been removed for visualization purposes. In the actual scene, the box is closed on all sides.

(Blender file)

sionna.rt.scene.box_two_screens#

Example scene containing a metallic box and two screens made of glass

Note: In the figure below, the upper face of the box has been removed for visualization purposes. In the actual scene, the box is closed on all sides.

(Blender file)

sionna.rt.scene.double_reflector#: Example scene containing two metallic squares

(Blender file)

sionna.rt.scene.etoile#: Example scene containing the area around the Arc de Triomphe in Paris The scene was created with data downloaded from OpenStreetMap and the help of Blender and the Blender-OSM and Mitsuba Blender add-ons. The data is licensed under the Open Data Commons Open Database License (ODbL).

(Blender file)

sionna.rt.scene.floor_wall#: Example scene containing a ground plane and a vertical wall

(Blender file)

sionna.rt.scene.florence#: Example scene containing the area around the Florence Cathedral in Florence The scene was created with data downloaded from OpenStreetMap and the help of Blender and the Blender-OSM and Mitsuba Blender add-ons. The data is licensed under the Open Data Commons Open Database License (ODbL).

(Blender file)

sionna.rt.scene.munich#: Example scene containing the area around the Frauenkirche in Munich The scene was created with data downloaded from OpenStreetMap and the help of Blender and the Blender-OSM and Mitsuba Blender add-ons. The data is licensed under the Open Data Commons Open Database License (ODbL).

(Blender file)

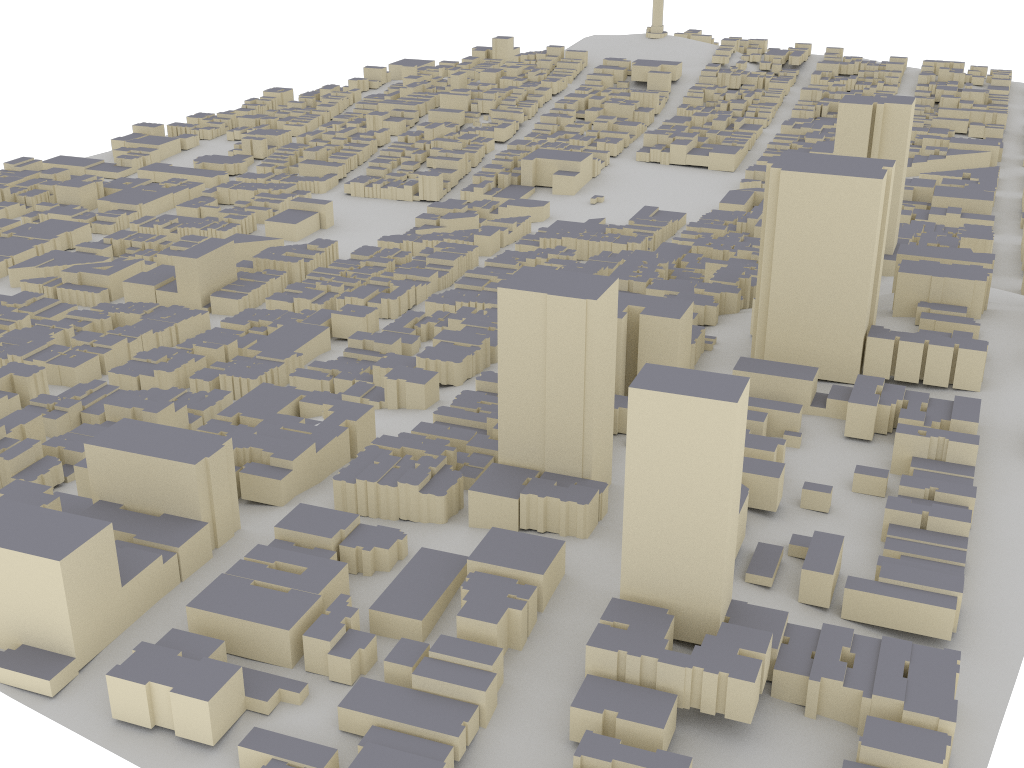

sionna.rt.scene.san_francisco#: Example scene containing a portion of San Francisco. The scene was created with data downloaded from OpenStreetMap and the help of Blender and the Blender-OSM and Mitsuba Blender add-ons. The data is licensed under the Open Data Commons Open Database License (ODbL).

(Blender file)

sionna.rt.scene.simple_reflector#: Example scene containing a metallic reflector

(Blender file)

sionna.rt.scene.simple_street_canyon#: Example scene containing a few rectangular building blocks and a ground plane

(Blender file)

sionna.rt.scene.simple_street_canyon_with_cars#: Example scene containing a few rectangular building blocks and a ground plane as well as some cars
